RAM Mounts Brake / Clutch Base

RAM Mounts Brake/Clutch Base With One or Two 1″ Balls

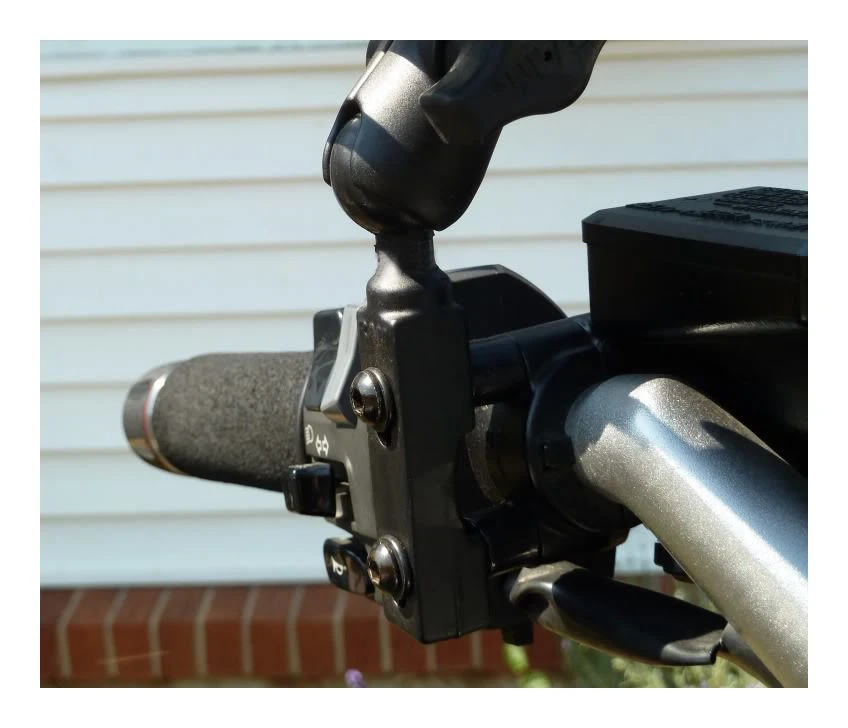

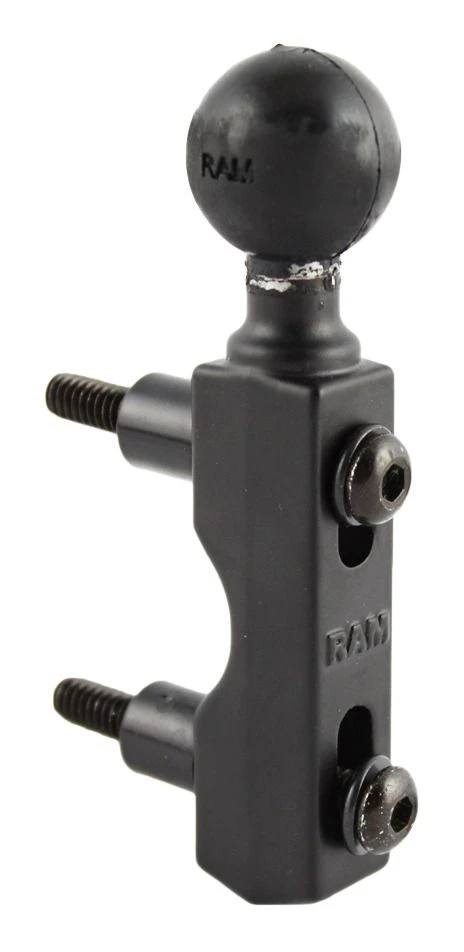

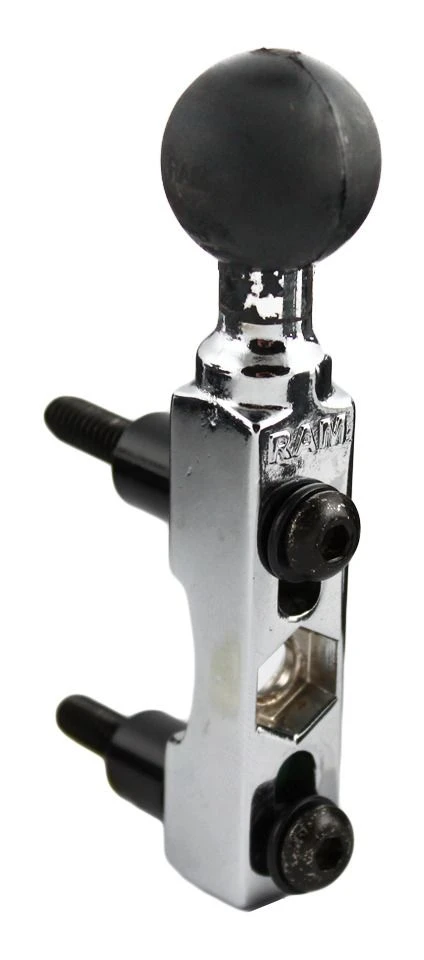

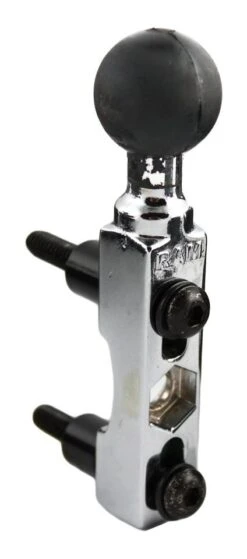

The RAM-B-309-1 / RAM-B-309-1CH connects to your handlebar clutch/brake clamp, left or right side, and holds one 1″ diameter mounting ball. The base fits the control clamps on your motorcycle with 50mm x 6mm stainless steel hardware, provided in the kit.

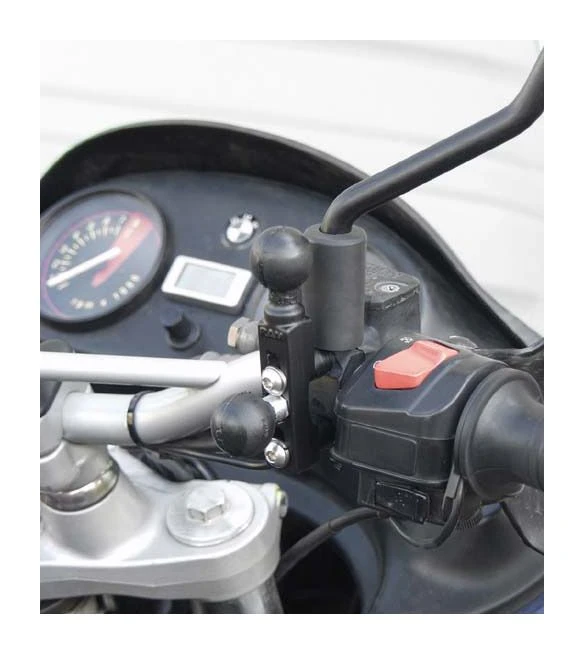

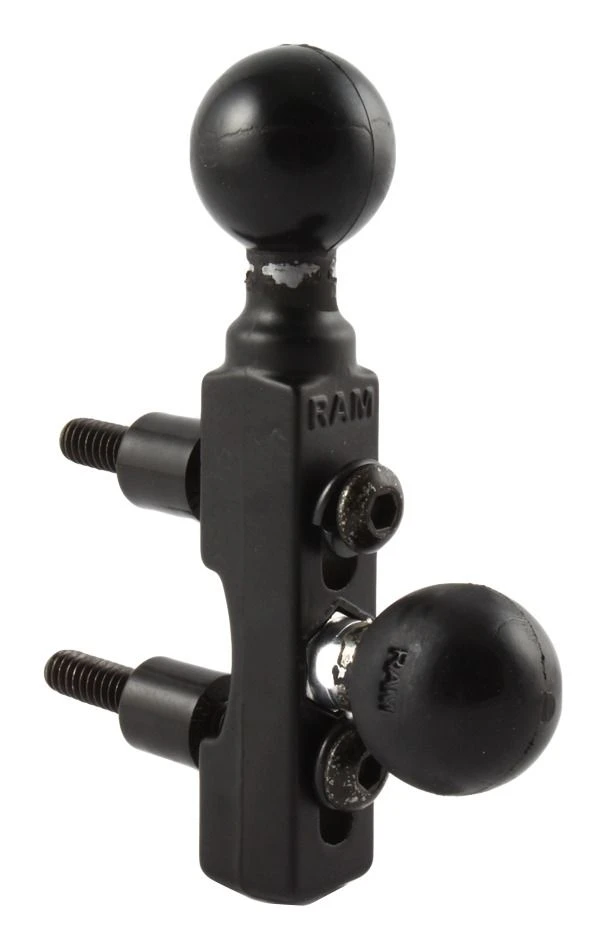

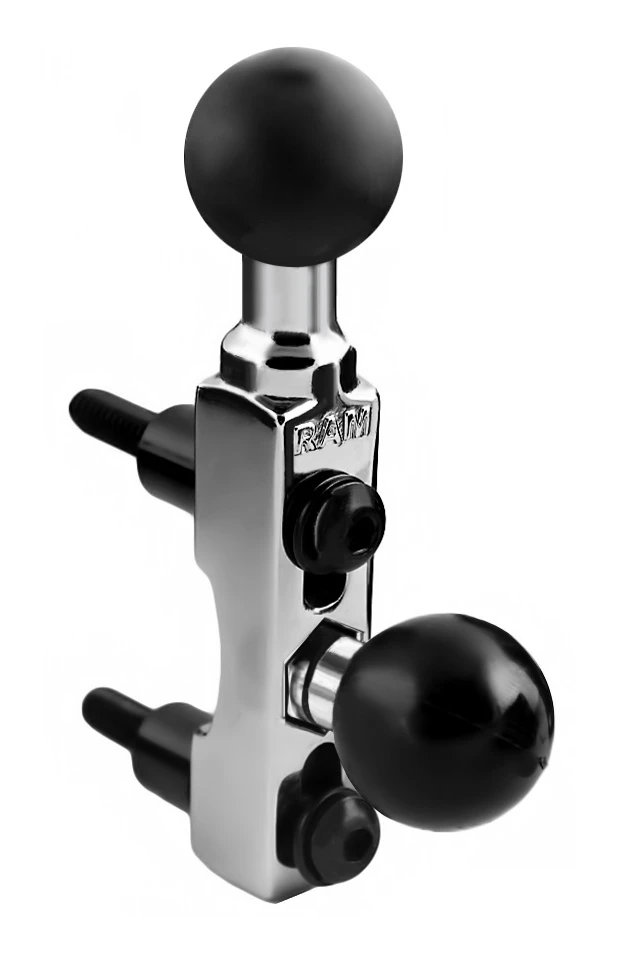

The RAM-B-309-2 connects to your handlebar clutch/brake clamp, left or right side, and holds two 1″ diameter mounting balls. The ball that is connected between the hole centers is removable. The base fits the control clamps on your motorcycle with 50mm x 6mm stainless steel hardware, provided in the kit.

Material:

•  Powder Coated Marine Grade Aluminum  or Powder Coated Marine Grade Aluminum with Chrome Finish

Ball Size:

• 1″ Rubber Ball “B” Size

Note: To see if the RAM-B-309-1,  RAM-B-309-1CH, or RAM-B-309-2 base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94″ and a maximum of 1.58″.
