Motogadget Mo-Unit Basic Digital Control And Fuse Box

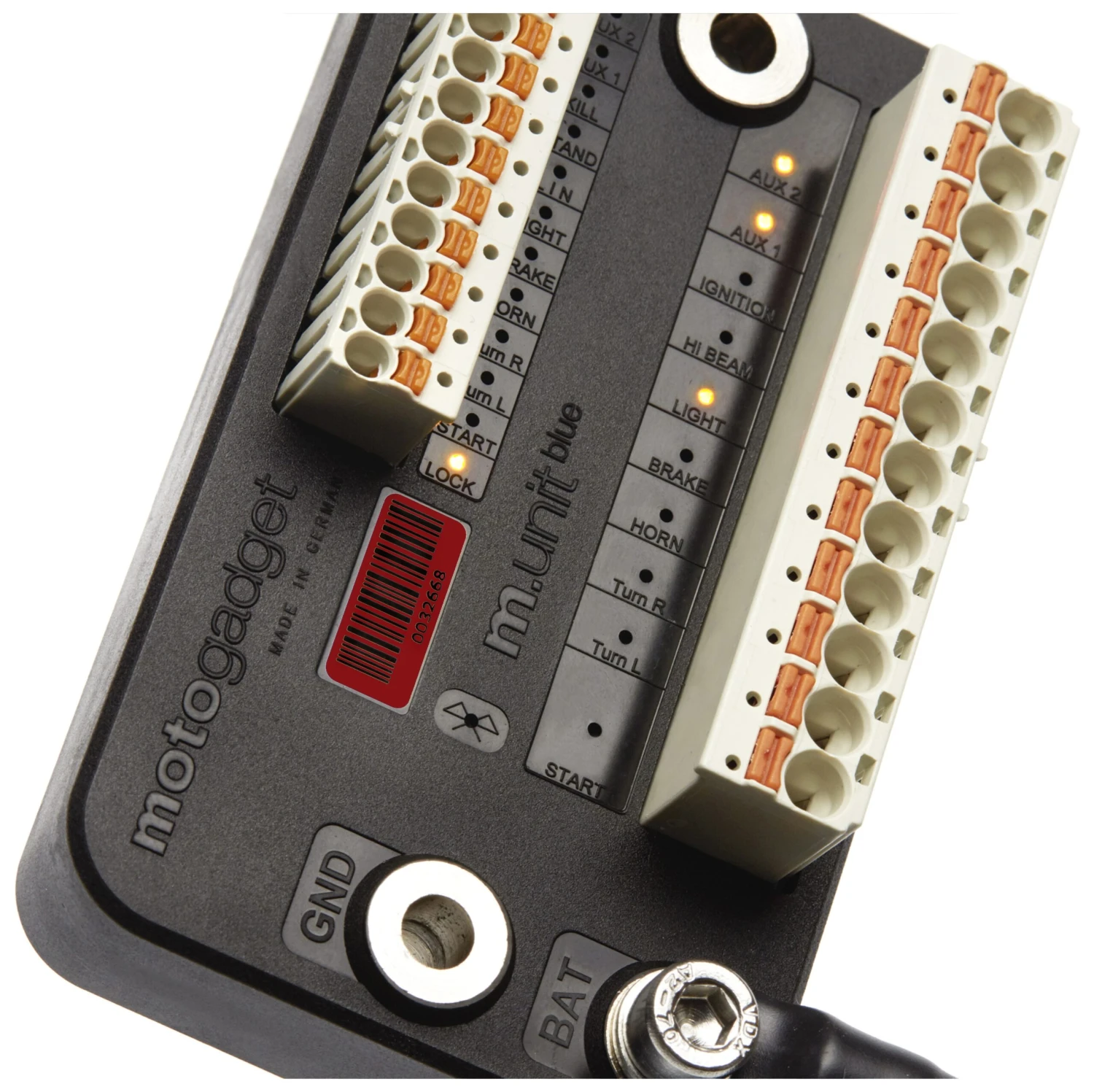

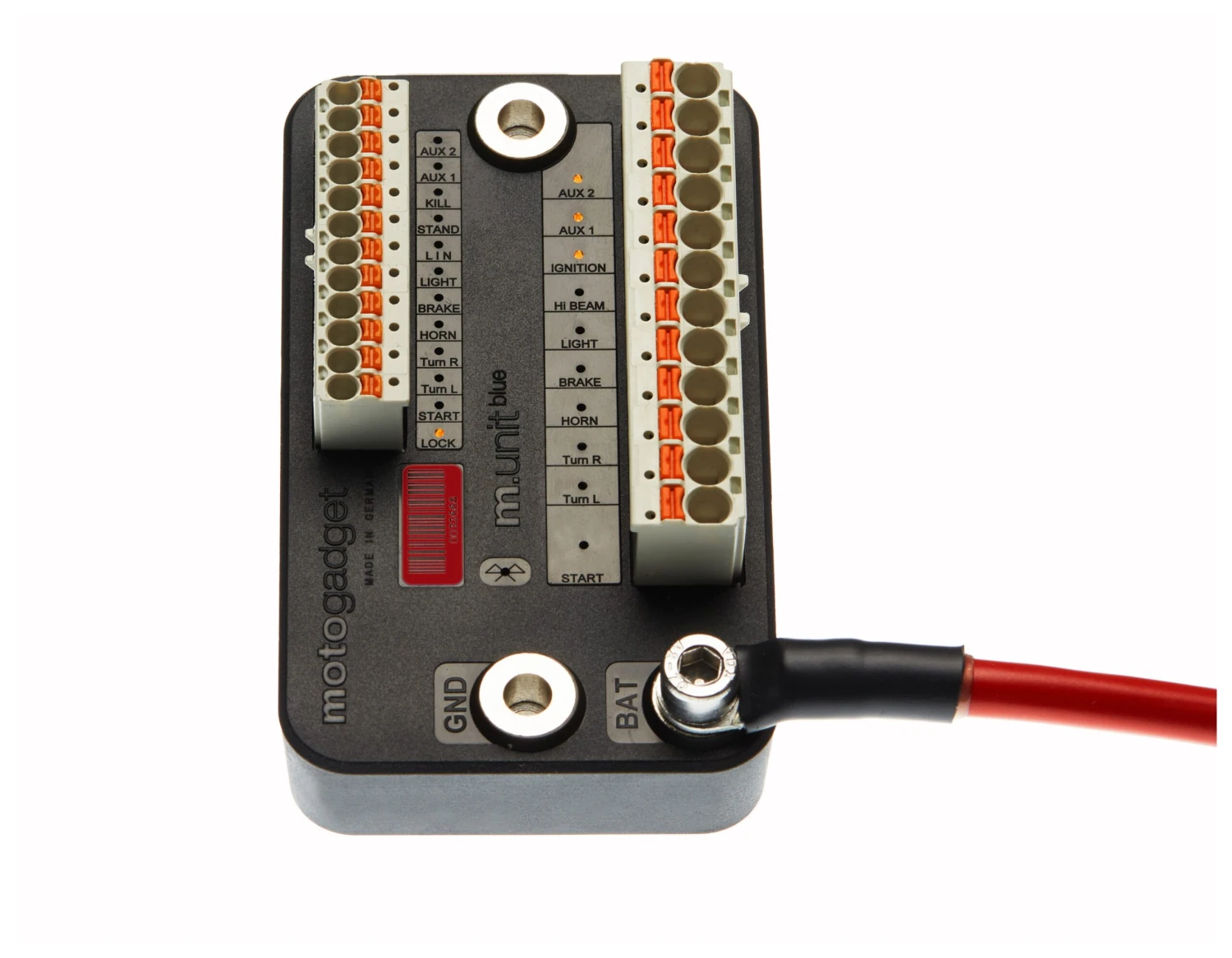

Motogadget mo.unit Basic Digital Control And Fuse Box

Within the DIY rewire-your-whole-bike food chain, the m-Unit Basic is an evolutionary step forward from the very popular mo-Unit V2 and it only lacks the Bluetooth functionality found on the mo-Unit Blue. All told, there’s 12 input channels on one side then 10 output channels on the other. Designing electrical circuits and wiring up your bike is still a difficult task, however the mo-Unit Basic makes it easy as it can be since it has been specifically engineered for the job. With the mo-Unit Basic, circuits are digitally monitored -this means if you have an overload somewhere, the circuit will be tripped and an LED next to your output will flash. Correct the issue, re-cycle the mo-Unit and get back on the road.

Features:

• Complete digital control using buttons possible with 4 or 5-button operation
• Complete replacement for the fuse box
• 10 independent circuits are digitally monitored and switched off if there are faults, after the fault is rectified, the safety function is automatically reset
• Integrated alarm system that can be installed in any position.
• Integrated, digital flasher relay that is load-independent; automatic switch-off optional and can be set; m.wave mode can be selected
• Integrated hazard warning light
• Turn signal can optionally be set as a positioning light
• Integrated parking light and headlight flashing
• Lo-beam and Hi-beam (up to 200 W switched capacity) can be controlled using only one button
• Integrated, digital brake light modulator; flashing mode can be programmed
• Acceleration-controlled emergency brake light (automatic warning signal)
• Integrated starter relay for the starter system with solenoid (up to 30A switched capacity)
• Intelligent and configurable management/switch-off of power consuming devices so that the maximum starting energy from the battery can be used when starting the motorbike
• Integrated digital horn relay
• Two configurable additional outputs AUX1 and AUX2
• Diagnostics function for assigning inputs, outputs, the circuit switching status, short circuit diagnostics etc
• Calibration and current measurement enables faults to be detected on all lamps

Specifications:

• 101mm L x 61mm W x 28mm H (3.97″ L x 2.40″ W x 1.10″ H)
• Fasteners: 2 x M5 stainless steel bolts (installation and ground connection), 1 x M5 screwing contact for battery Plus
• Operating voltage: 6 V – 20 V
• Operating temperature: -20°… +80°C
• Made in Germany

Inputs:

• 1 x input (+12 V switched) for ignition lock or mo.lock
• 11 x control input (minus/switched to ground) for:
• Left turn signal
• Right turn signal
• Lo/Hi-beam
• Starter
• Horn
• Brakelight
• Kill switch
• Stand switch
• LIN bus
• AUX1
• AUX2

Outputs:

• 10 x Outputs (+12V) for:
• Left turn signal
• Right turn signal
• Lo-beam
• Hi-beam
• Starter
• Horn
• Brakelight
• Ignition
• AUX1
• AUX2

Includes:

• mo.Unit Basic
• 1 x M5 stainless steel bolt
• 2 x M5 stainless steel bolts with nut
• Detailed installation and operating instructions
